EUROFLO® Civil Pipe

Specify EUROFLO® civil pipe for one of the strongest plastic pipes on the market.

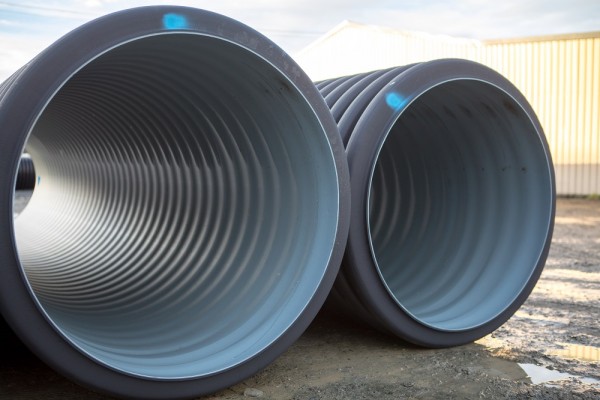

EUROFLO® civil is a twin walled culvert pipe made from HDPE (high density polyethelene) that comes in SN8 and SN16 ratings.

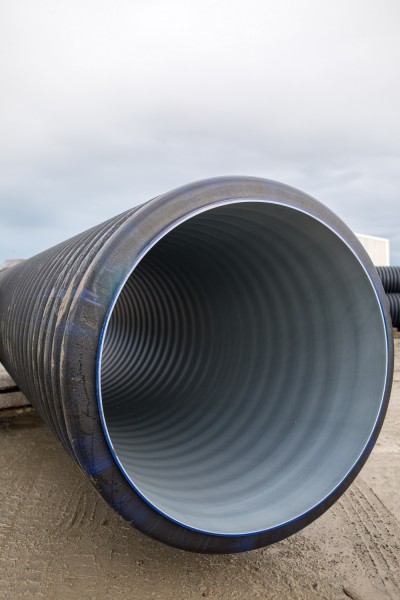

This premium grade product has a double ribbed exterior for extra strength. The interior sports a smooth bore for superior flow as well as ensuring there is less internal silt build-up.



EUROFLO® is made to the ASNZS5065 standard and holds the certification. It is recommended for all drainage and sewer applications.



about-pandf-global2

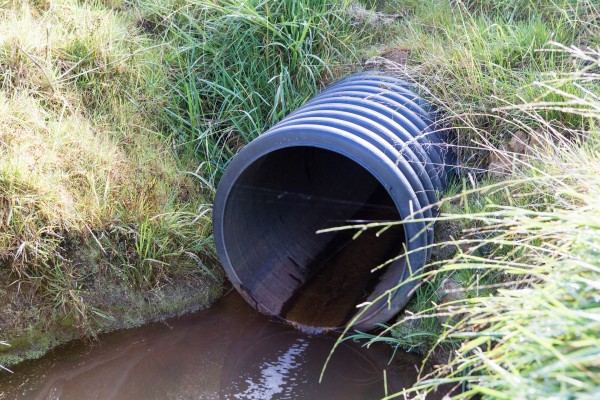

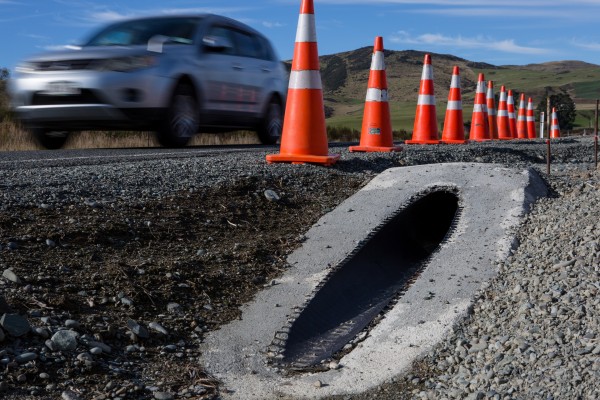

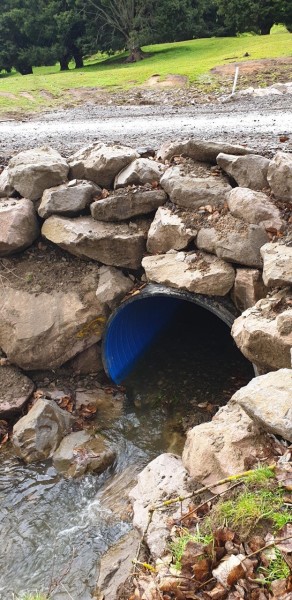

EUROFLO® civil is a versatile, strong pipe that comes in SN8 and SN16 ratings and is suited for roading, construction and all civil stormwater projects.



If longevity and future-proofing is important to your project then EUROFLO®, with a projected lifespan of 100 years in New Zealand conditions, is the pipe for your project.



At 5.8M long and around 5% of the weight of concrete pipes, you can save time and money in both transport and installation. The long 5.8 metre lengths each have a socket on one end for easy joining.

ASNZS:5065 and other Standards



Production of EUROFLO® civil pipe is checked by external and internal laboratories in compliance with EN ISO 9001:2015, EN 13476-3, and AS 5065:2005 standards.

In New Zealand some pipes claim to be made to the ASNZS:5065 standard but are not independently tested and certified to this standard.

EUROFLO® civil pipe holds this certification and you can download a copy of the certificate below.



The sizes (OD) of EUROFLO® civil that hold this certification include:


SN8

250mm, 315mm, 400mm, 500mm, 630mm, 800mm, 1000mm and 1200mm.

Download a copy of the certificate of conformity here.


SN16

160mm 200mm, 250mm, 315mm, 400mm, 500mm, 630mm and 800mm.

Download a copy of the certificate of conformity here.




AS/NZS 5065:2005 (R2016) Polyethylene and polypropylene pipes and fittings for drainage and sewerage standards.

In accordance with the Ministry of Business, Innovation and Employment this standard specifies the requirements for polyethylene (PE) and polypropylene (PP) pipes and fittings for sewerage and drainable applications, above and below ground, inside and outside of buildings, and intended to be used where the pipeline is operating under gravity flow and the operating pressure is low. It includes requirements for both plain and structured wall pipes and fittings.



Stock

Stock is held in stores throughout New Zealand supplied by stock locations in Auckland, Christchurch and Invercargill.

Sizes (OD)
160mm, 200mm, 250mm, 315mm, 400mm, 500mm, 630mm, 800mm, 1000mm, 1200mm, 1300mm, 1500mm, 1700mm, 1900mm, 2100mm



EUROFLO® Fittings available include rubbers, sealing adaptors, holesaw, sealing rings, reducers, bends and junctions.



Easy to handle, maintenance and rust free, EUROFLO® is also resistant to chemically aggressive soil conditions.



Comprehensive engineering calculations and installation instructions including how to connect EUROFLO® to concrete pipes can be found in the resource box below.

Make your next project possible with EUROFLO® Civil Pipe



Contact our Civil Specialist Team today to find out how:



Freephone: 0800 115 042

Email: civil@pandfglobal.com
